Motogadget mo.view blade mirror

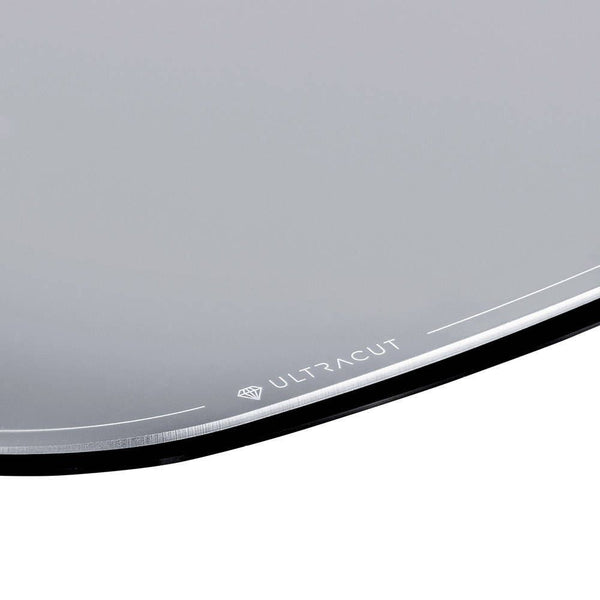

Motogadget now exclusively presents its glass-less mirror series mo.view. The special feature of this motorcycle mirror is the patented mirror surface, which is machined directly into the metal body. The Aluminum itself is the mirror surface!  A weightless design without edge and frame is possible and the mirror body itself becomes very thin and light.  Shattered glass or fallen out glass are simply not possible!

An elaborate fly-cutting process, using diamond cutting tools on ultra precision CNC machines, machines the convex mirror surface directly out of solid aluminum. To protect the surface Motogadget applies, in a vacuum, a special plasma coating which makes it absolutely resistant to scratches, corrosion and oxidation.

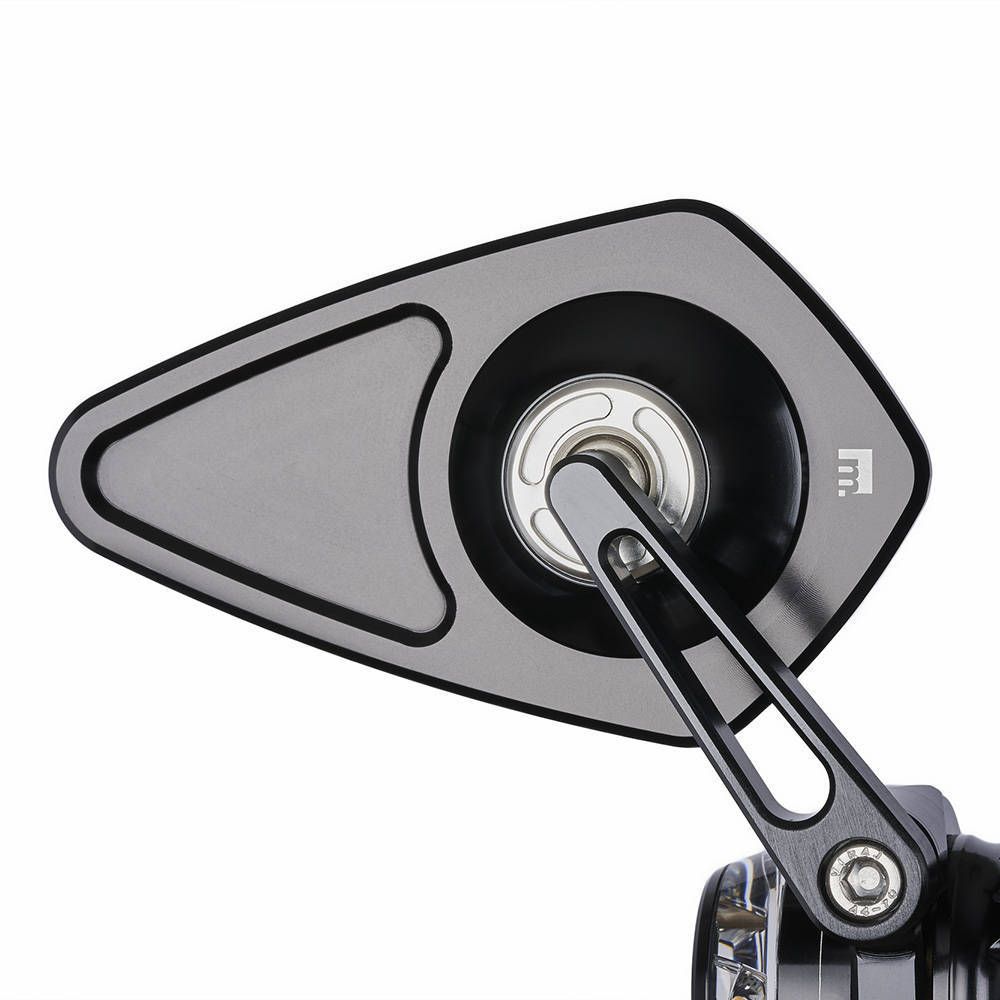

The mirror and mirror arms are CNC machined from billet aluminum. Deep black anodizing gives them a distinguished appearance. All components such as bolts and ball-joints are made of stainless steel. This makes for precise and stable adjustment of the mirrors.

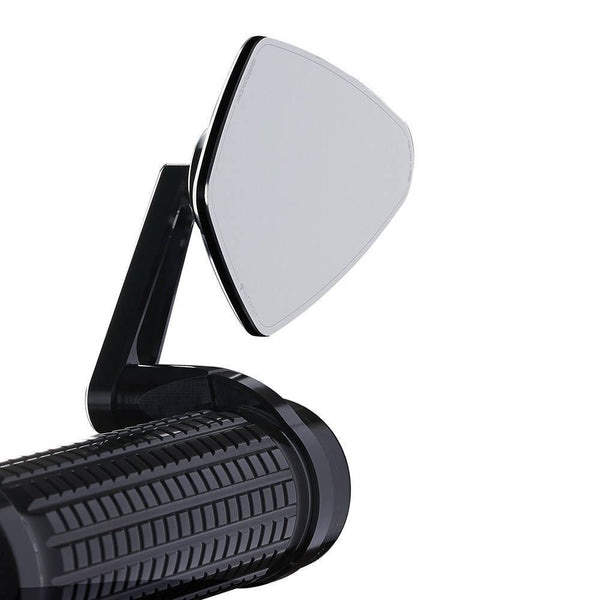

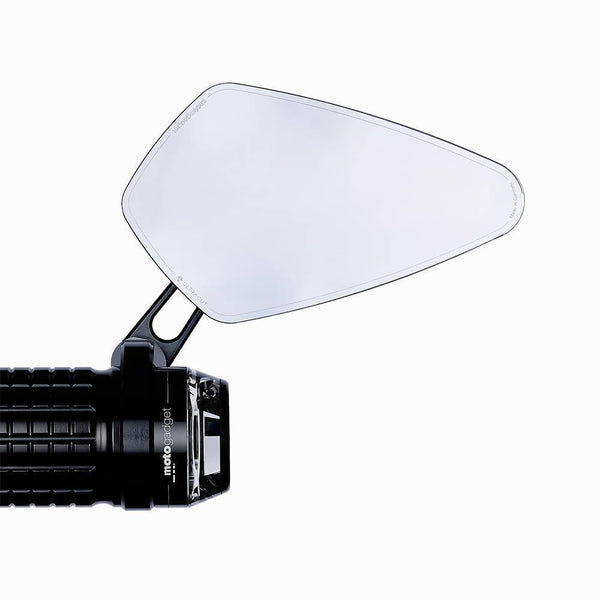

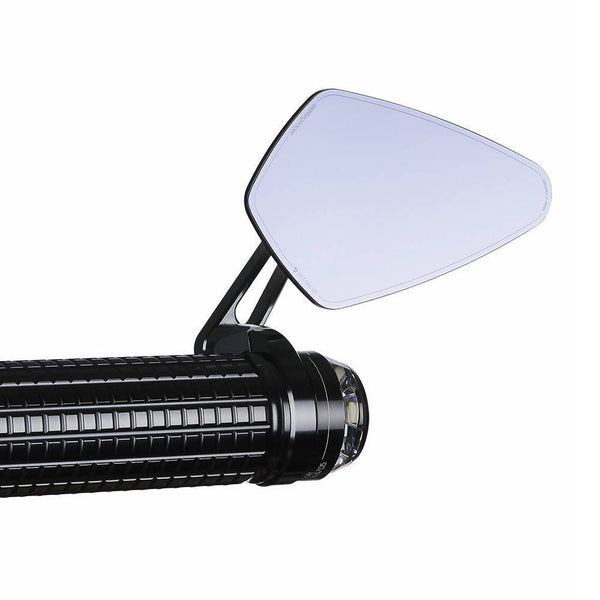

Mo.View blade

The handlebar end mirror mo.view blade is very small. It can be mounted above or below the handlebars. The mirror is suitable for the right and left side. It mounts directly onto the handlebar end or the bar end extension - MG7001060.

Dimensions

Width of mirror body: 100 mm
Height of mirror body: 60mm
Thickness of the mirror body without ball-joint: 4 mm
Length of the stem: 61 mm
Inner diameter of the clamp: for 7/8" and 1" handlebar
Clamping width: 8 mm
Weight: 94 g

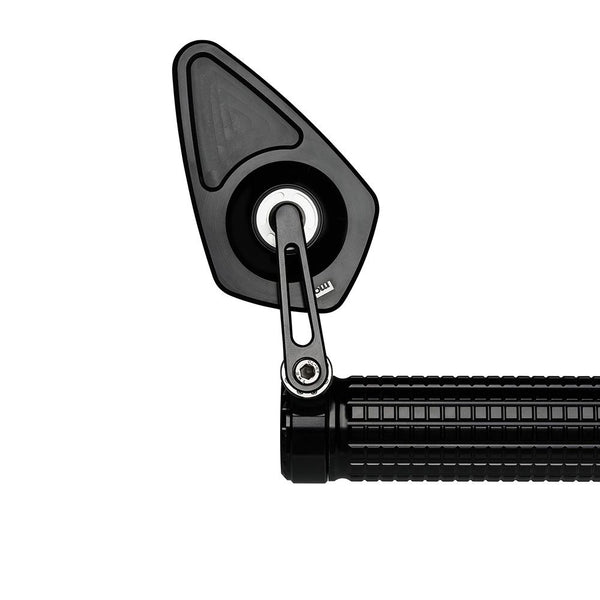

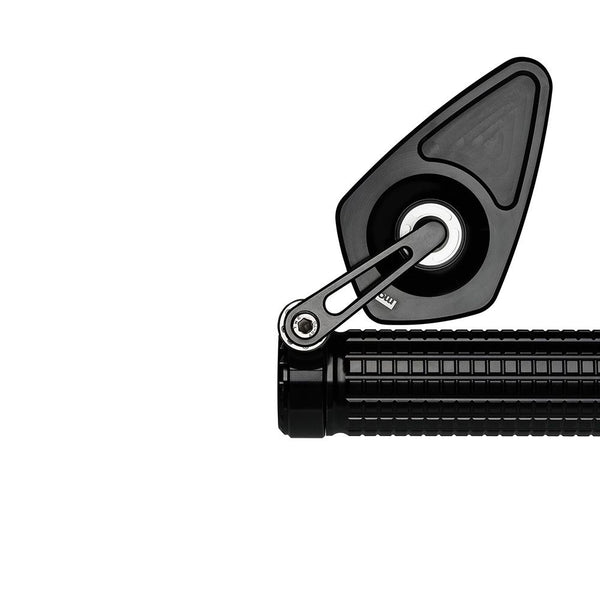

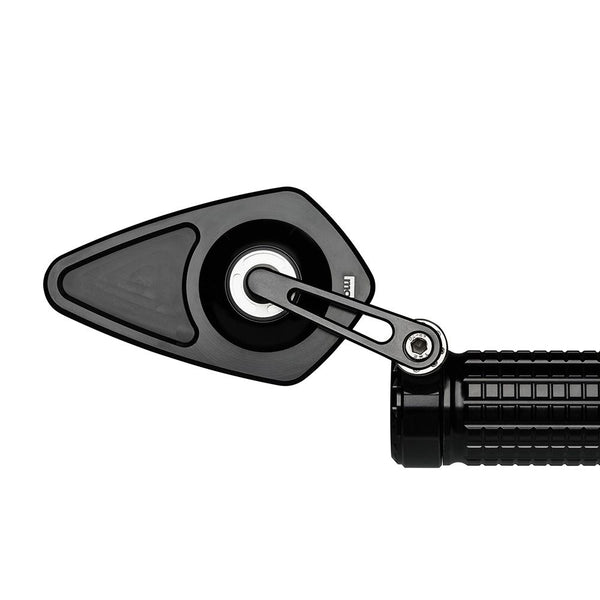

mo.view blade flip

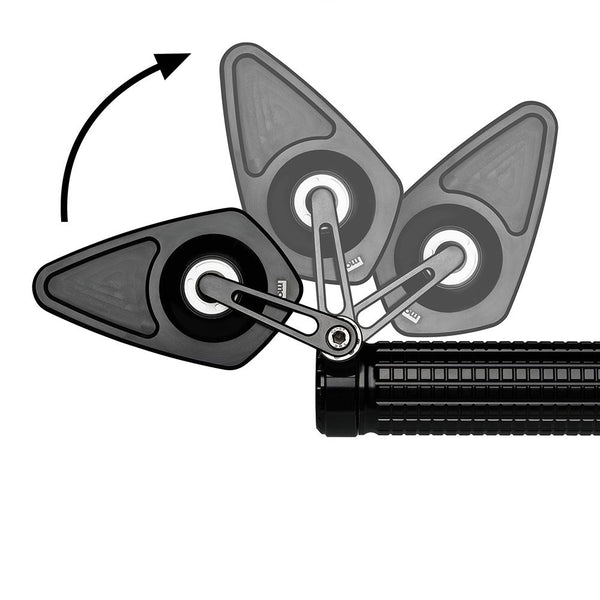

The handlebar end mirror mo.view blade flip has a special feature: a swivel mirror joint with defined detent angles at 45 ° intervals. The detent is designed very solid and can not be moved unintentionally.
This allows the mirror to be pivoted upwards if necessary without changing the setting of the mirror. Perfect for narrow passages, trailer or tight fits (garage).

The handlebar end mirror mo.view blade flip is very small and fits perfectly to our bar end blinkers, mo.grip, mo.grip soft, mo.switch and mo.switch mini. It can be mounted above or below the handlebars. The mirror is suitable for the right and left side.

Dimensions

Width of mirror body: 100 mm
Height of mirror body: 60mm
Thickness of the mirror body without ball-joint: 4 mm
Length of the stem: 61 mm
Inner diameter of the clamp: for 7/8" and 1" handlebar
Clamping width: 12 mm
Weight: 125 g
