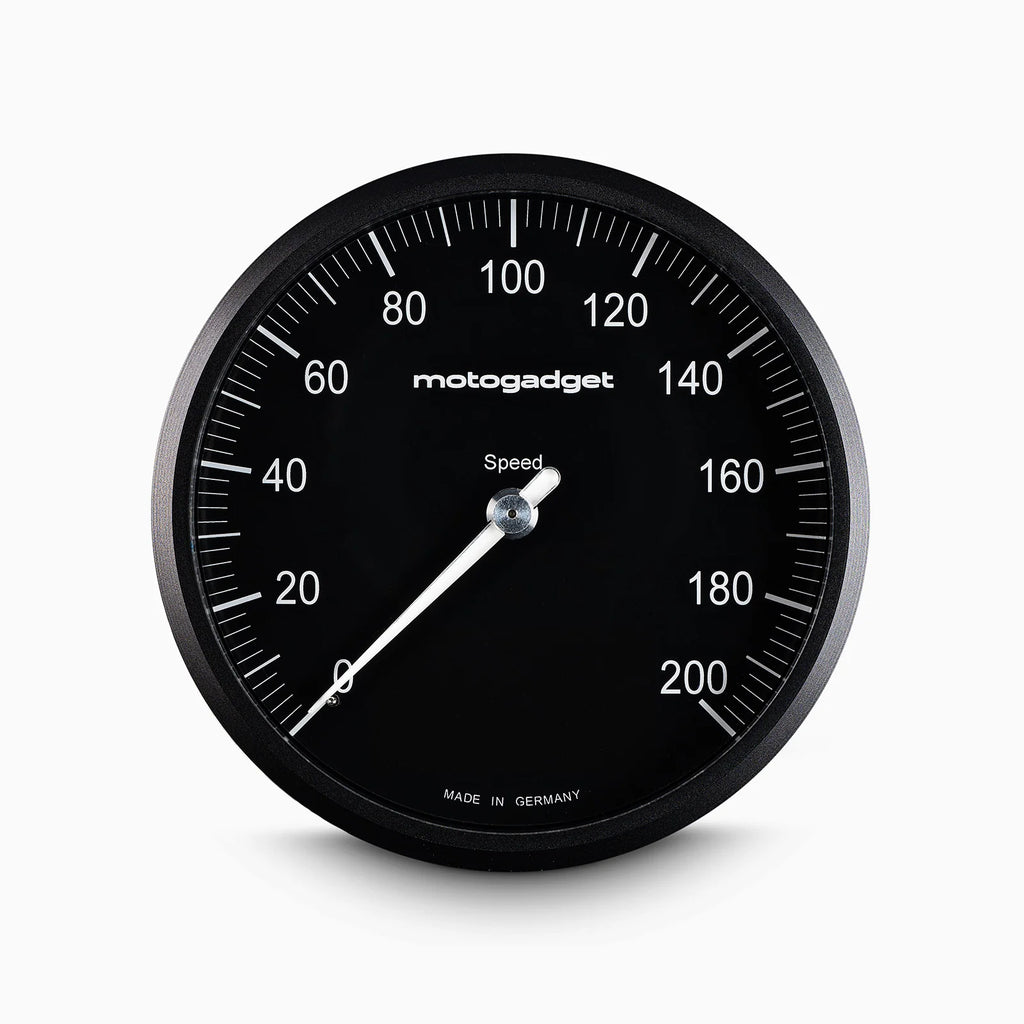

Motogadget instuments plug and ride kits for the BMW R9T

Our plug and ride kits for the BMW R9T series enable simple conversion even for the less technically experienced. The swap is extremely simple and can be carried out in 10 minutes without any previous technical knowledge.

The kits are already fully wired and only need to be connected to the vehicle plug. The vehicle warranty remains intact and it is possible to return to the original condition at any time!

Compatible with almost all models in the R9T series built between 2014 and 2016 and the series with Euro 4 (from model year 2017). Also Urban G/S, Pure and Scrambler.

No changes to the vehicle are necessary. No further adjustments are necessary. Dismantling is possible at any time.

Specifications

The following functions are possible with the motoscope pro and the motoscope Chronoclassic 2 for BMW R9T 2017-2024:

• Operation with the original handlebar buttons
• Setting and displaying the heated grip levels
• Setting and displaying the driving modes
• Speed (kmh/mph)
• Odometer (km/mi)
• Trip A (km/mi)
• Trip B (km/ml)
• Time*
• Motor temperature*
• Speed display as bar and number
• Switching flash (adjustable)
• Acceleration (g)
• Time measurement 0-100 kmh or 0-60mph (s)
• On-board voltage (V)
• Travel time (hh:mm:ss)
• Operating hours counter (h)
• Average speed (kmh/mph)
• Maximum values RPM, acceleration, speed
• Gear indicator
• Reserve (indicator light)
• ABS (indicator lamp)
• Oil pressure switch (indicator light)
• Neutral (indicator light)
• Blinker left / right (indicator light)
• High beam (indicator light)

Double-click on the lower menu button to switch between the display of the original instrument and the Chronoclassic 2 or motoscope pro.
* The time and engine temperature functions are only available in the display of the original instrument.

What is not shown:

• Activate & deactivate alarm system
• Immobilizer
• Operating the cruise control

The functions and display values for the motoscope classic, mini and tiny instruments are limited to the specific range of functions of the respective instrument. Furthermore, no time or engine temperature can be displayed.

2014 - 2016

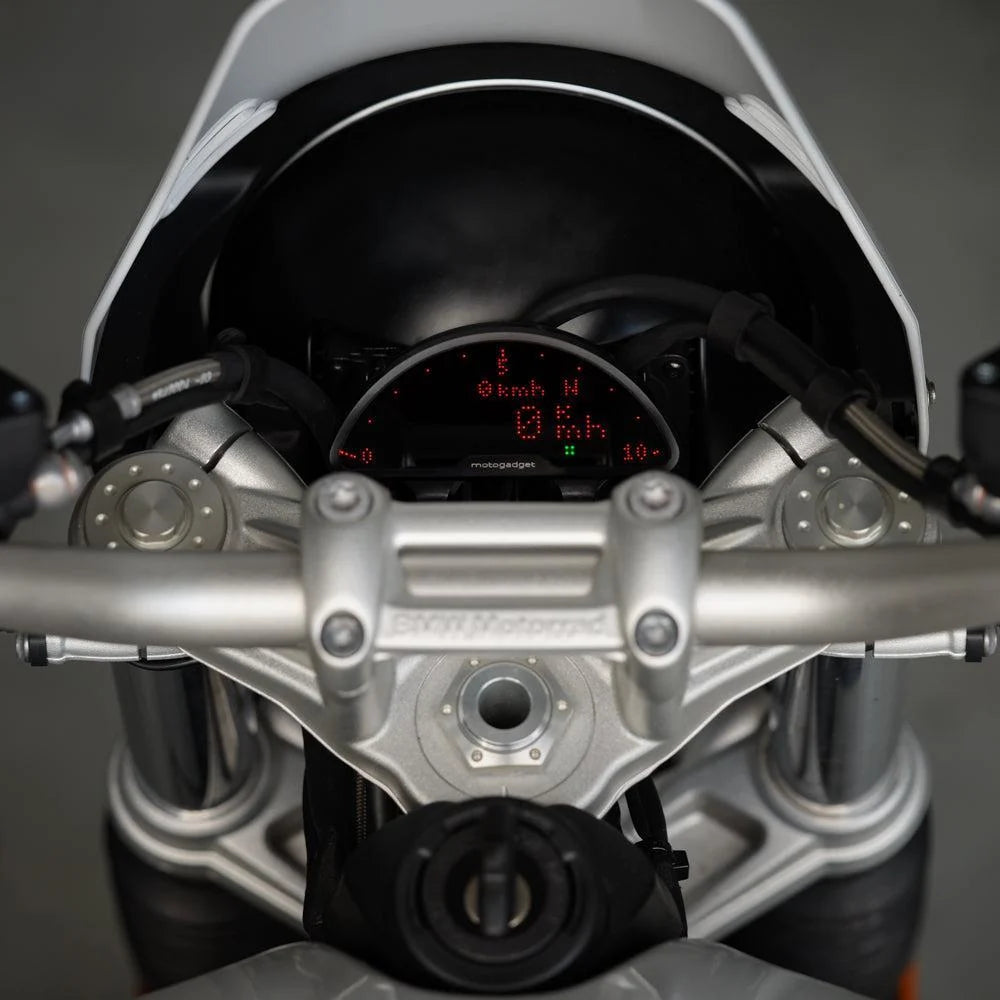

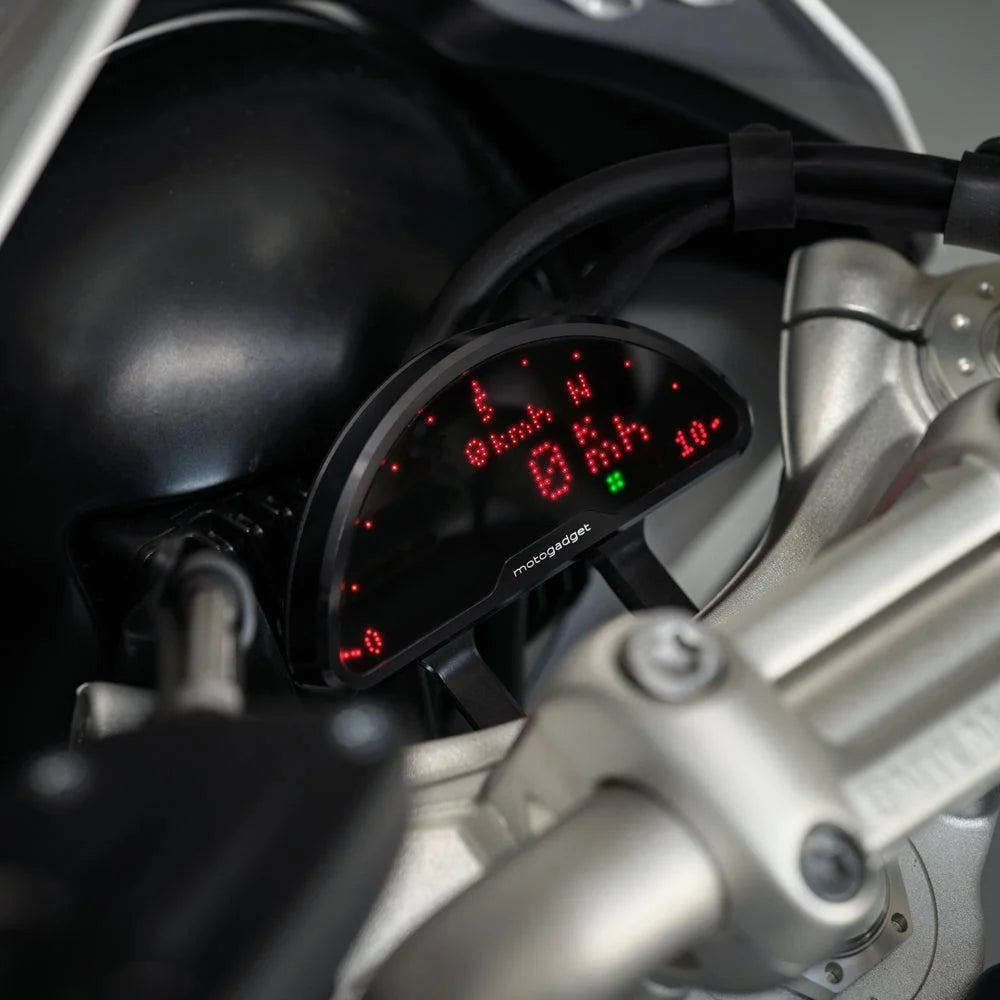

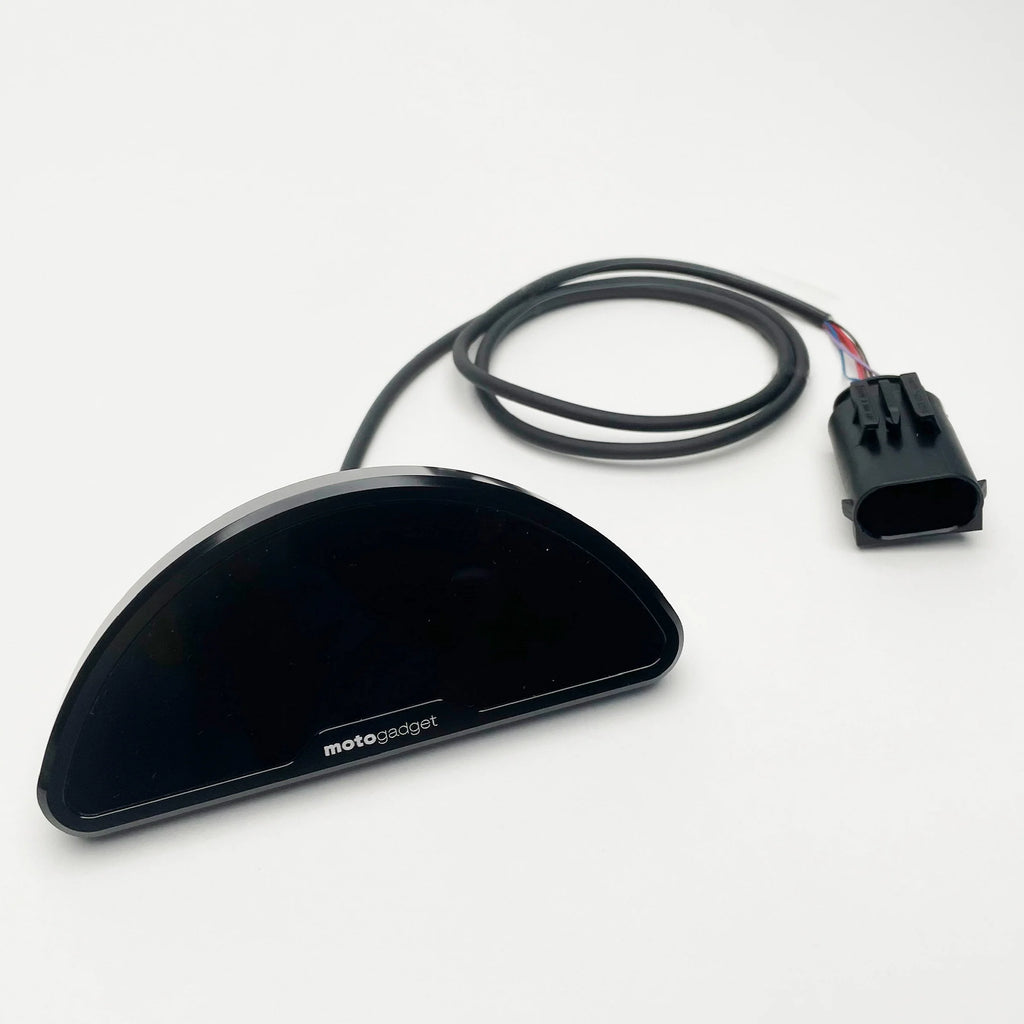

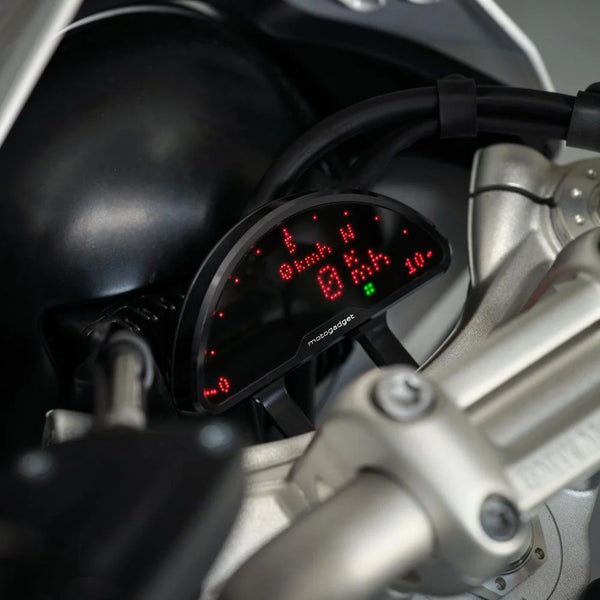

• motoscope pro:
  60cm connection cable & vehicle plug for BMW R9T,
  Mounting plate and screws

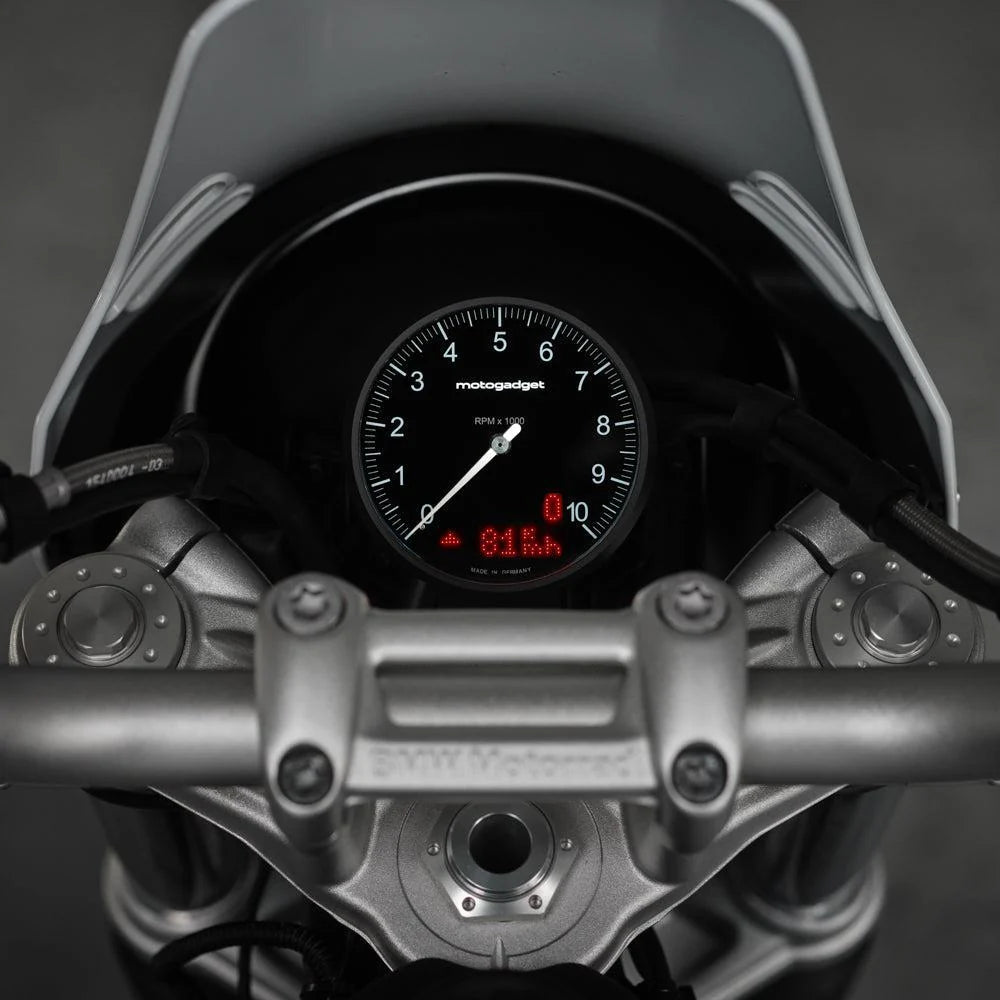

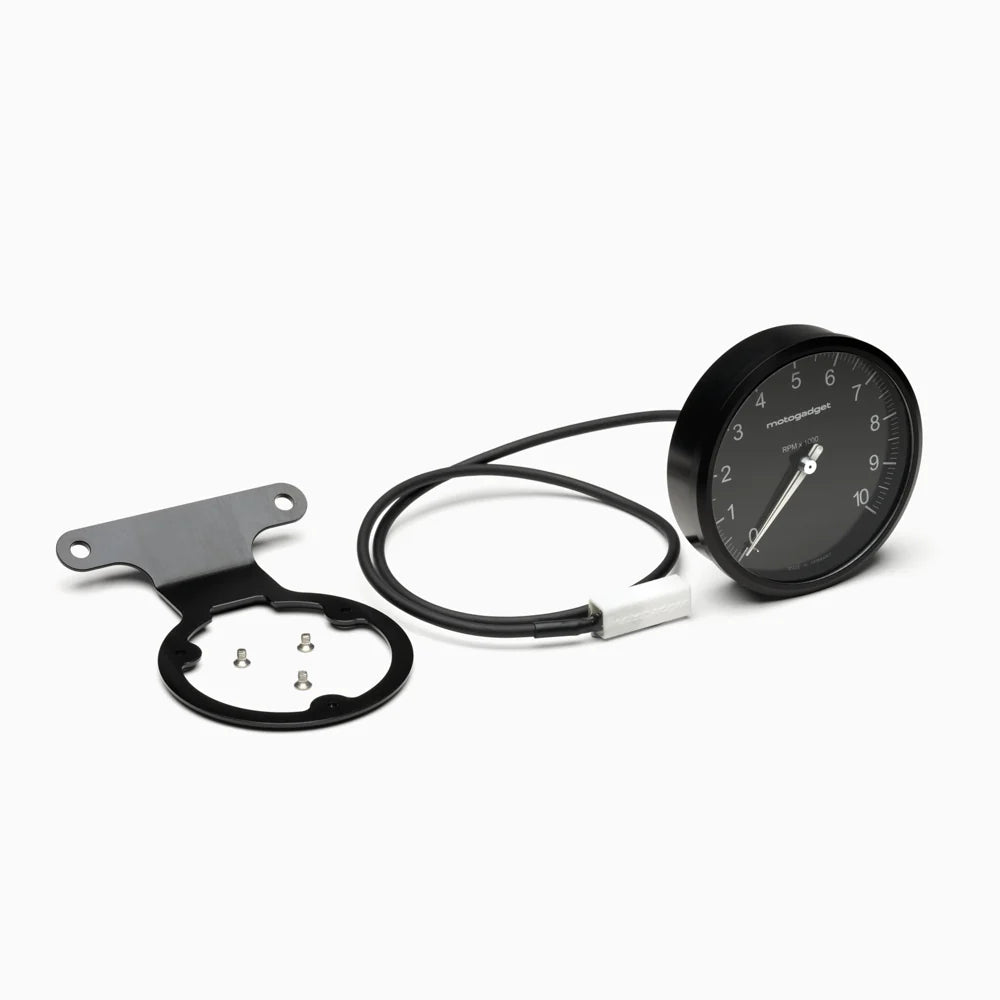

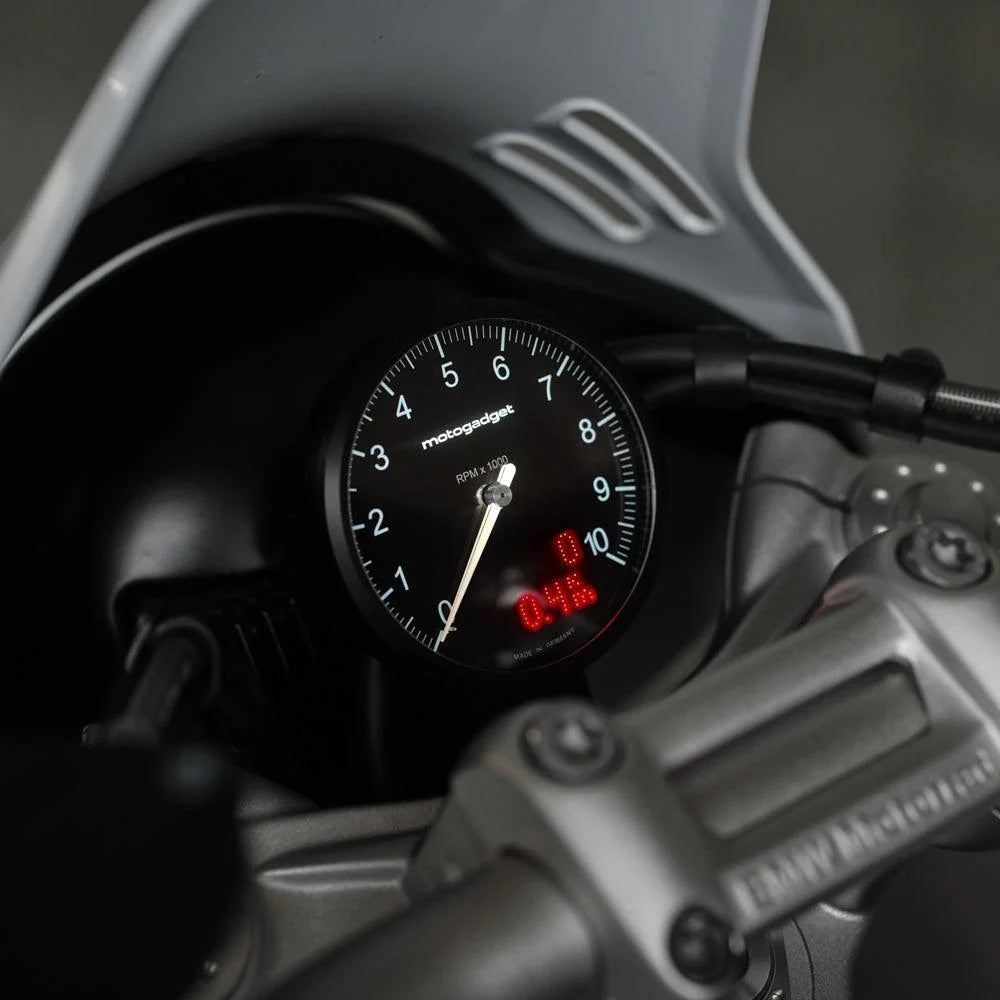

• motoscope chronoclassic 2:
  60cm connection cable & vehicle plug for BMW R9T,
  Mounting plate and screws

2017 - 2023

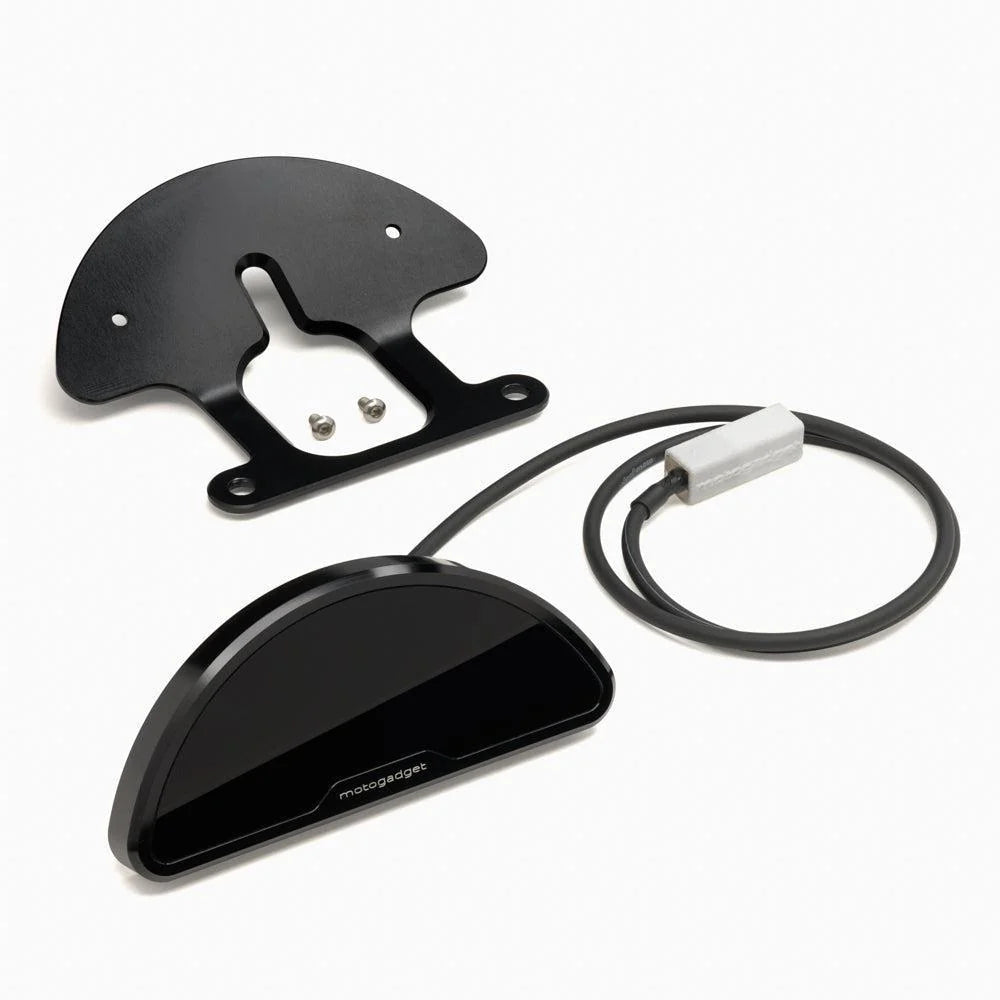

• motoscope pro:
  60cm connection cable & vehicle plug for BMW R9T,
  Mounting plate with screws

• motoscope chronoclassic 2:
  60cm connection cable & vehicle plug for BMW R9T,
  Mounting plate and screws

• motoscope classic, mini, tiny:
  mo.hub adapter, instrument depending on selection incl. vehicle connector for BMW R9T,
  mounting plate and screws, 150cm connection cable with fuse to battery

Note: this is a special order gauge that comes from Germany, non stocking item.

Usually ships in 4-6 days
